A Continuous Ambient Air Quality Monitoring System (CAAQMS) monitors a city's air quality in real time. It continuously measures air pollutants throughout the year consistently. The pollutants measured include SO2, NO, NO2, NH3, CO, O3, CO3, VOC, PM10, and PM2.5. The CAAQMS is an advanced variant of the AAQMS air quality monitor system, utilizing high-quality innovations such as the Internet of Things for automated data collection, transmission, and analysis at a central server. Data is transferred in real-time, with adjustable intervals between 2 and 30 minutes. During intervals, the data is automatically analyzed using advanced AI for historical analysis and other applications.

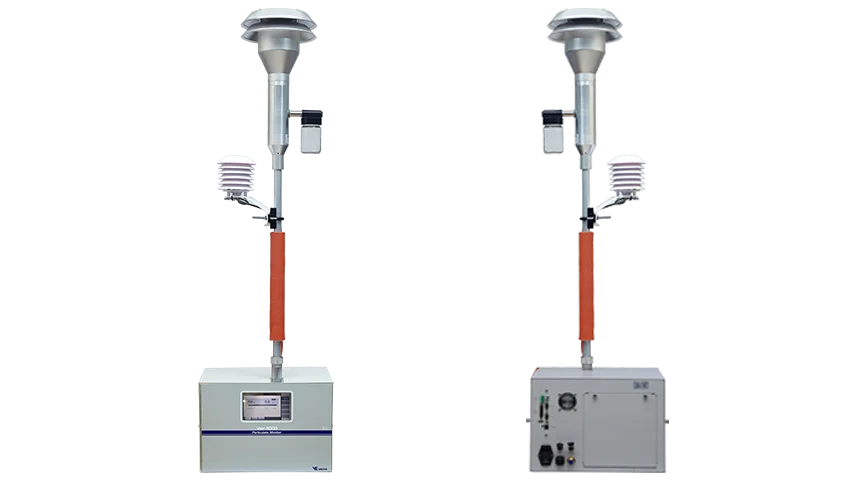

PM 10 and PM 2.5
The Vasthi PM 10 and PM 2.5 Particulate Matter Monitors work The Principle of Particulate Matter 10 Analyzer uses the following technology: Ambient particulate matter, beta-ray detector for measuring the concentration of particulate matter whose aerodynamic equivalent diameter is smaller than 2.5/10 m on rolled filter tape The instrument uses low-radiation C14 as the radioactive source.
The emitted ray passes through the filter membrane with contaminants and will be received by the detector. The detector [1] is composed of a photomultiplier tube (or Geiger detector), a plastic scintillator, and a counter. The thickness can be analyzed quantificational according to β-ray energy that the detector received, and then the PM 10 and PM 2.5 concentrations in the air can be calculated received, and then the pm 2.5 and pm 10 concentrations in the air can be calculated. PM10 Airquality

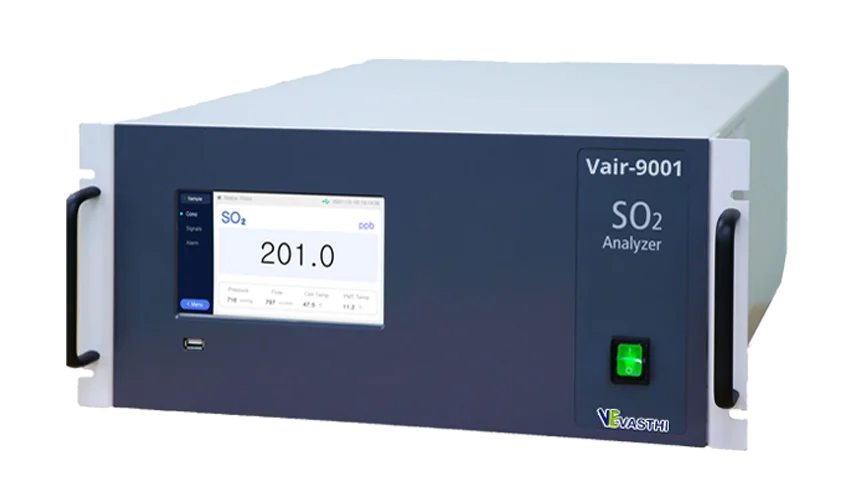

Ambient SO2 Gas Analyzer
The Vair-9001 SO2 Analyzer is the analyzer that measures the minimum amount of SO2 in air correctly using the UV fluorescence method. The UV lamp with a lower chance of sensitivity used for Vair-9001 was applied, and the self-manufactured kicker to remove the obstacle components such as HC was installed.
To prevent the adhesion of the specimen, the response chamber and specimen tube of special coating material were used to improve minimum detection and precision.
All gas analyzers of the Vasthi series were equipped with a screen interface design using a TFT-LCD and touch screen so that the user can operate the analyzer and maximize the visual image. The MCU applied to the analyzer is an ARM11 32-bit processor and operates based on Linux Kernel 2.6, which maximizes the system's stability due to multiprocessing.

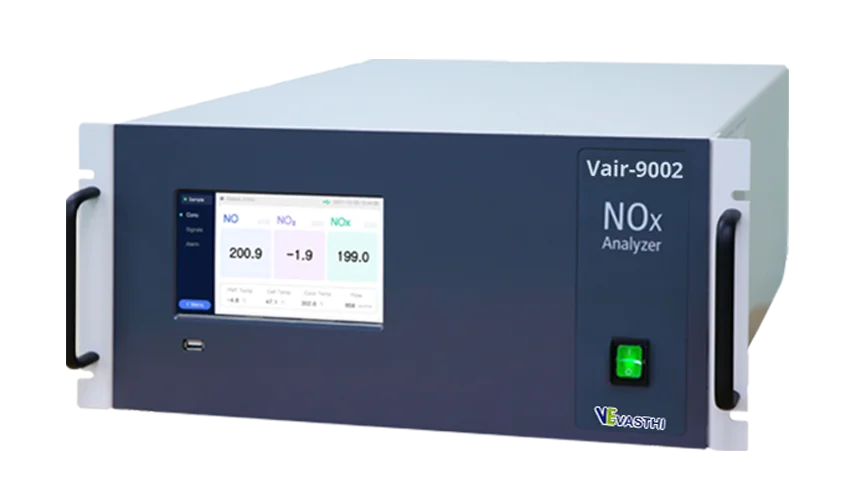

NOx Analyzer
Vair-9002 NOx Analyzer is the analyzer that measures the minimum amount of NOx(NO, NO2) in the air at the same time using Chemiluminescence.
03 Generator used for Vair-9002 is designed for strong durability with no failure for a long time and the NO2 —NO Converter for measurement of NO2 is equipped with highly efficient cartridge material which improves the change rate near 100%. All temperature adjustment systems such as response cells, Converter, PMT, TEMP, etc are designed to be entered in the self software which is easy to use.

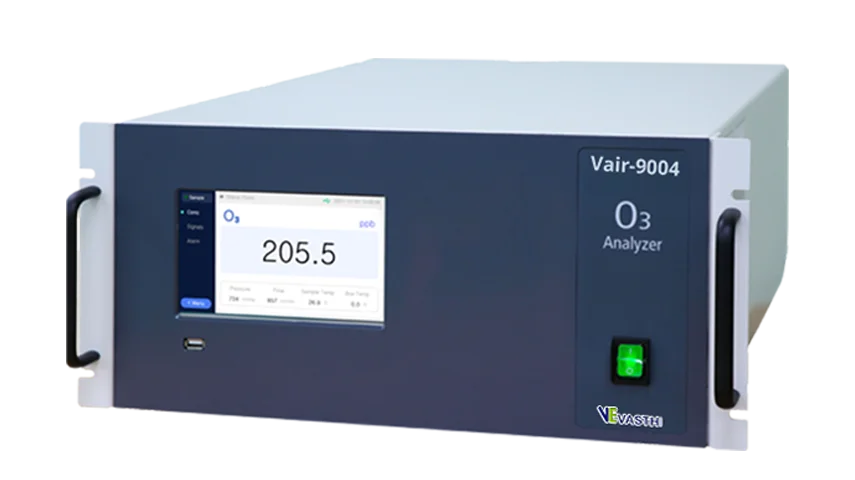

Ambient Ozone Gas Analyzer
Vair-9004 O3Analyzer is the analyzer that measures minimum amount of O3in air correctly using the UV absorption method. The analyzer is equipped with high performance and high-efficiency O3 Scrubber and used the specimen tube of special coating and materials to remove the obstacle components and prevent the adhesion of the specimen for the measurement of the minimum amount of ozone.
All gas analyzers of the Vasthi series were equipped with screen interface design using TFT-LCD & Touch screen so that user cathe n operate the analyzer and maximize the visual image, and MCU applied to the analyzer is ARM11 32bit processor and operates based on Linux Kernel 2.6 which maximizes the system stability due to multiprocessing.
Ambient CO Gas Analyzer
Vair-9003 CO Analyzer is the analyzer that measures the minimum amount of CO in air correctly through the optical curved mirror which has a long light path and durability, using the Non—dispersive Infrared Analysis Method (NDIR GFC). Vair-9003 is equipped with a specially designed GFC wheel with no leak for a long time and he stable infrared lamp (IR Source).
All gas analyzers of Vasthi series were equipped with screen interface design using TFT—LCD & Touch screen so that user can operate the analyzer and maximize the visual image, and MCU applied to the analyzer is ARM 11 32bit processor and operates based on Linux Kernel 2.6 which maximizes the system stability due to mutiprocessing.
In addition, the analyzer is equipped with an automatic zero correction system (Auto Zero) for smooth measurement and various interfaces (Ethernet, RS232, R5485, USB, DIO, Analog out) so that users can use it more conveniently and usefully.

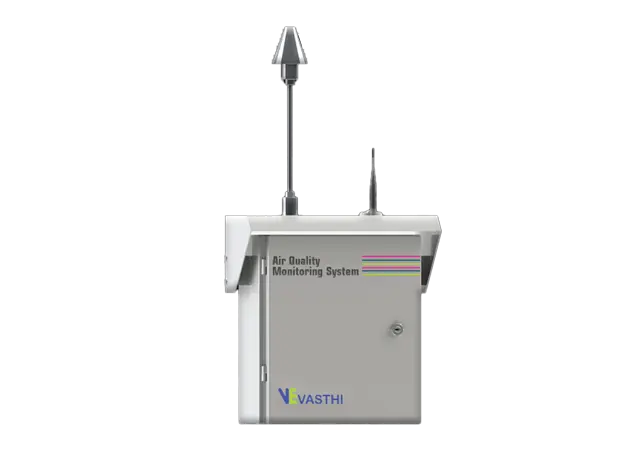

Million Plus cities urban air quality monitoring station
Urban air quality monitoring station: With the help of a million-plus cities' air quality monitor, you can keep a check on the air pollution levels of various regions across the country and provide timely warnings to critical zones with high levels of pollution so that timely and effective measures can be taken to protect public health and safety.
The Urban Air Quality Monitoring Station device is equipped with multiple sensors for PM2.5, PM10, CO, NO2, SO2, O3, and humidity measurement (%). It also provides notifications based on the pollution level in your area and sends notifications to your phone when the pollutant level reaches a dangerous level.
The Air Quality Index (AQI) reading is indicated by color. The red color indicates a very high AQI level, which requires the public to avoid any outdoor activities; the orange color indicates a high AQI level, which requires the public to reduce outdoor activities; and the green color indicates a low AQI level, which is safe for human activities.
Accuracy: The device is certified by Indian National Measurement Institute (INMI) and has excellent performance accuracy. It accurately detects critical pollutants such as PM2.5 and PM10.
Multi Point Calibrator
Dynamic calibration of an instrument based on microprocessor technology, developed specifically for precision gas analyzers and multiple gas calibration equipments. Through the use of high-precision mass flow controllers and standard gases for gas parameters like zero point and span test calibration gas, we can also provide different kinds of gas sources.
A dynamic calibration device can be equipped with a built-in, programmable ozone generator. The ozone generator is used not only as an accurate and reliable calibration of ozone but also for g-d NO20 multi-point piecewise linear drive to ensure repeatability and accuracy of ozone concentrations; an optional spectrophotometer can also achieve the ozone generator's high accuracy control.

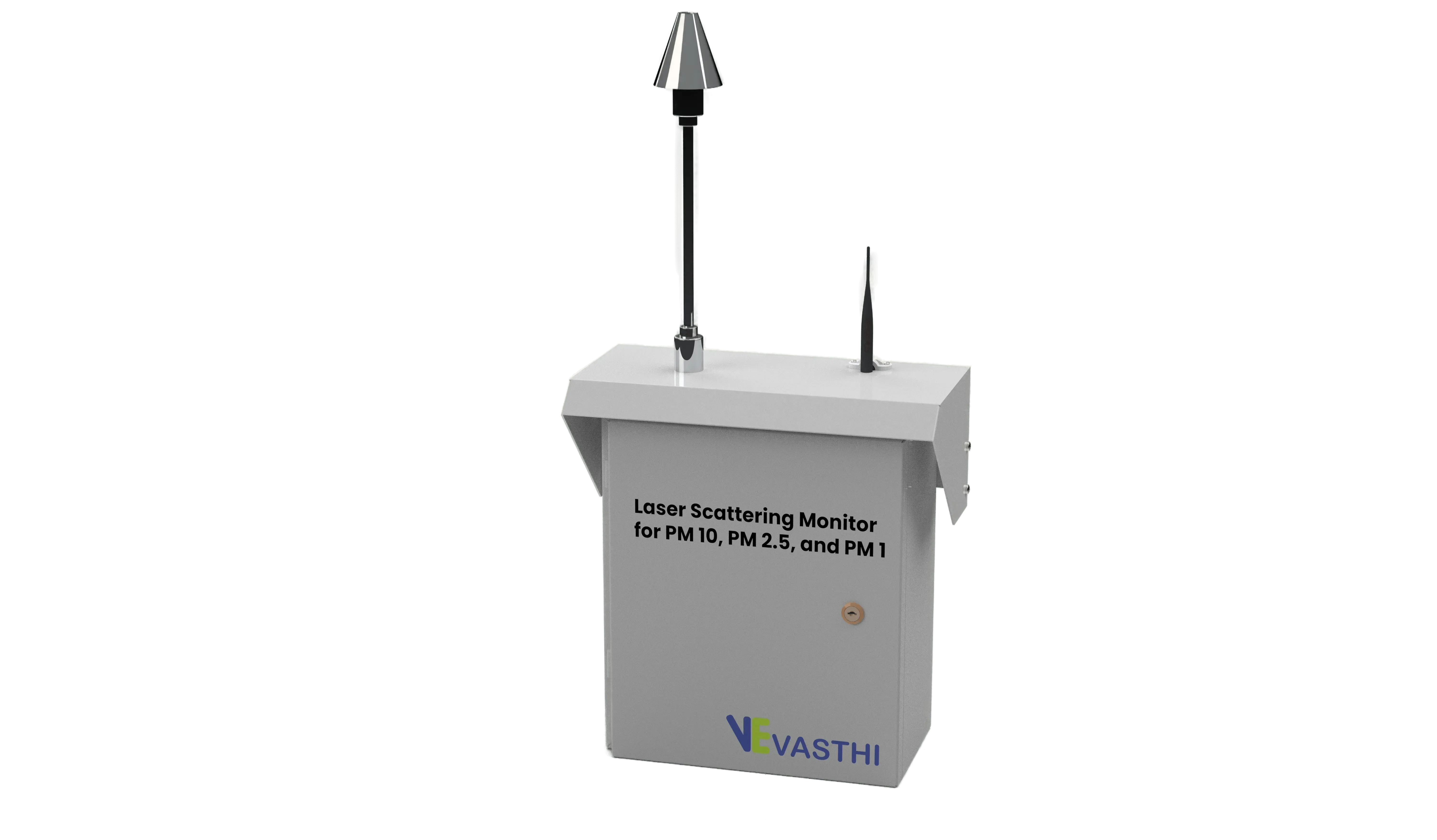

Laser scattering monitor for PM 10, PM 2.5, and PM 1
The Vasthi Instruments online dust monitoring system (model: Vair-3000 series) can measure PM concentration (including TSP, PM10, PM2.5, and PM1), ambient noise, and five meteorological parameters. The Vair 3000 series processes the monitored data and uploads the results to the server over GPRS or a network. In this way, intelligent management of online monitoring, analysis, and forecasting is provided in multiple modes.

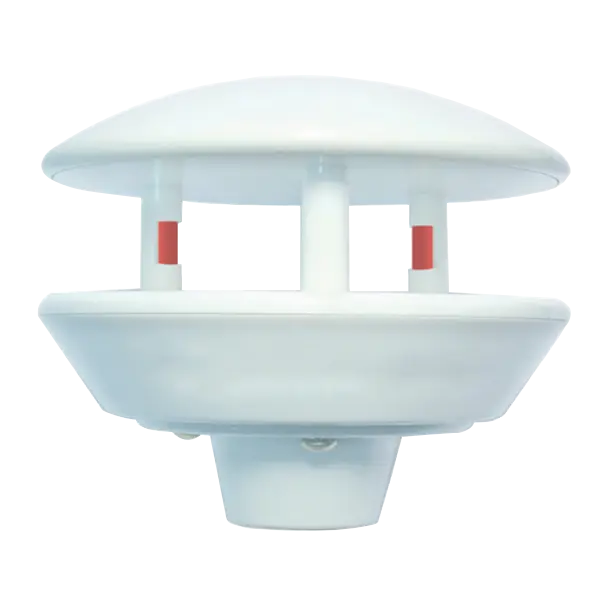

Ultrasonic Weather Monitoring Station
Vasthi's outdoor weather station measures wind speed and direction, air temperature, barometric pressure, and relative humidity. The wind measurement is performed using ultrasonic sensors, which means there are no moving parts to wear out or get caught in the rigging.
The WSO100 accurately measures wind speed and direction even when tilted, making it ideally suited for heeled sailboats or powerboats operating in pitching and rolling seaways.
When used with Vasthi displays DSM 150, DSM 250 N2KView, you can view apparent wind speed and direction, humidity, air temperature, barometric pressure (with graphs to see trends), wind chill factor, heat index, and dew point. If you add speed through water (DST110), GPS (GPS200), and compass (SSC300), you can view actual vessel-referenced wind speed and direction as well as ground-referenced speed and direction.

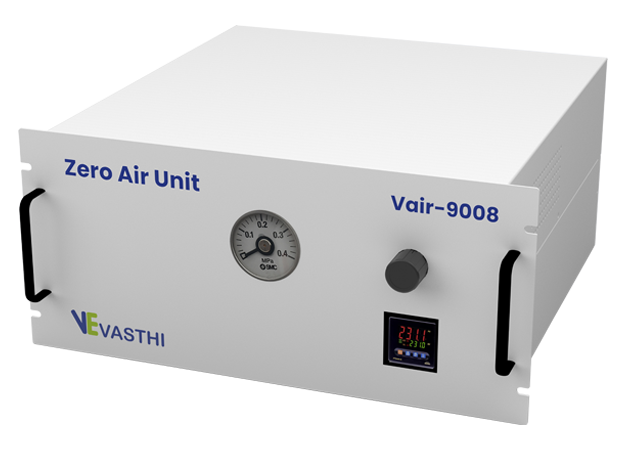

Zero Air Unit
Zero gas unit to provide clean,dryzero-air equipment.Mainly used forambient air quality monitoringsystem and the zero calibration of the instrument, it can also be used as penetration tube furnace cleaninggas or supporting gas equipped with FID analyzer.
Zero gas unit comprises an external oil -free aircompressors, pressure and flow controllers,waterremovalsystems,SO2,NO,NO2,O3 and H2S removal,and removal of COand hydrocarbons
Zero gas unit is based on principles such as adsorption,filtration,reaction,except for SO2 in the air,NO2,03,H2S,CO,NH3,hydrocarbons and particulateoutput dry clean air
Equipment removal system moisture in the air can be removed, producing less than one 20T dewpoint ofthe air,not under the influence of inlet air dewpoint.Also contribute to the removal of othergases,greatlyprolongs the life ofchemical remover.

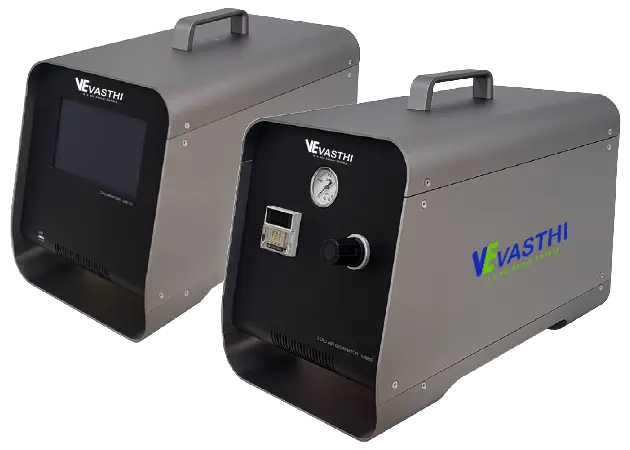

Portable Multi Point Calibrator Zero Air Unit
Calibrator/Zero Air Generator uses flux mixture method and GPT(Gas Phase Titration) method in which flux of pure ingredient gas and diluted gas are changed and mixed so that standard gas with desired concentration by dilution is supplied. Calibrator/Zero AirThe generator uses the flux mixture method and the GPT(Gas Phase Titration)method in which the flux of
Pure in gradient gas and diluted gas are changed and mixed so that standard gas withThe desired concentration by dilution is supplied

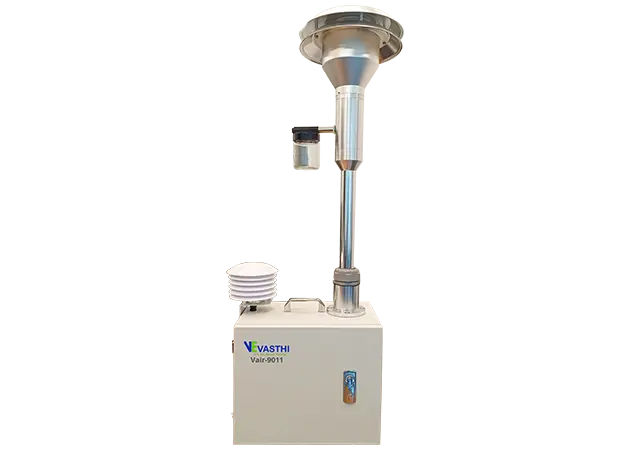

PM Sampler PM2.5 & PM10
The concentration and size distribution of airborne particles in the atmosphere are measured using a device called a particulate matter sampler. These particles, which are also known as particulate matter (PM), can differ greatly in size, composition, and place of origin. They can also have a major effect on the environment and human health.

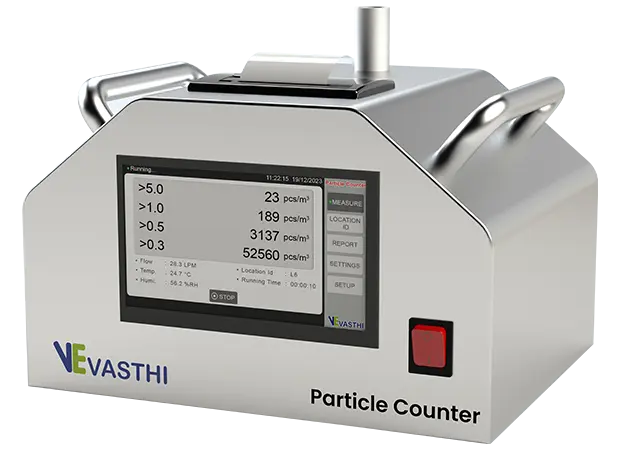

Particle Counter
A particle counter is a scientific instrument used to measure and count the number of particles in a Given environment. These particles can be solid or liquid, and they are typically suspended in the air or other fluids. Particle counters are widely employed in various industries and research fields where monitoring and Controlling particle levels are essential, such as clean rooms, environmental monitoring manufacturing processes, and medical facilities.
Particle counters find applications in various industries and fields due to their ability to measure and Monitor the concentration and size distribution of particles. Here are some common uses of particle
